AWQ 105 Pro Electro-Acupuncture Device
The AWQ 105 Pro redefines precision and performance in the professional therapeutic field. As a high-quality combination device for acupuncture treatments and TENS stimulation, it offers therapists excellent control and reliability. With its five outputs and intuitive digital controls, it enables precise, individualized patient treatment.
Configuration and Control
- Advanced Channel Selection: A total of 5 output channels, including a dedicated ADP/STIM output for combined point detection and stimulation.
- Group Control: Channels 1 & 2 and 3 & 4 can be adjusted independently in groups.
- Dual Power Levels:
- Low Mode: Optimized for fine electro-acupuncture.
- High Mode: Powerful performance for TENS applications.
- Precise Localization: The Loc/Needle/Stim switch allows quick switching between point detection, needle stimulation, or probe stimulation.
Technical Parameters & Modes
| Pulse Frequency | 1–100 Hz (X1) / 5–500 Hz (X5) |
| Pulse Width | 50–500 µs (X1) / 10–100 µs (X5) |
| Constant Mode | X1: 1–100 Hz at 50–500 µs | X5: 5–500 Hz at 10–100 µs |
| Timer | Integrated time selection (15 or 30 minutes) with acoustic end signal. |
| Display | Three clear LCD displays for frequency and sensitivity control. |
Performance Data & Power Supply
- Current (High): 0–45 mA (0–22.5 V voltage).
- Current (Low): 0–20 mA or 0–80 mA (0–10 V / 0–40 V voltage).
- Power Source: Operates with 6 standard 1.5 V AA batteries (low-battery LED warning below < 7 V).
- Physical Data: Weight approx. 726 g (excluding batteries), dimensions: 25.5 × 17.5 × 7.5 cm.
- Connection: Ø 1.5 mm output sockets.

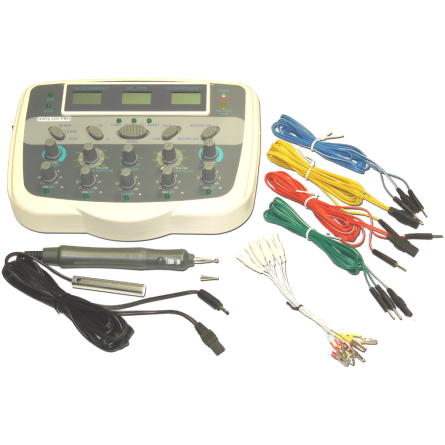

Scope of Delivery
- 1x Main unit AWQ 105 Pro
- 1x Combined detection and stimulation probe
- 4x High-quality connection cables
- 4x Pairs of alligator clips
- 1x User manual in English
Note: Batteries are not included in the standard delivery.
Key Advantages at a Glance
- Maximum Flexibility: 5 independent channels for complex treatment setups.
- Reliable Diagnostics: Acoustic and visual point detection (sound can be switched off if needed).
- Intuitive Control: Real-time digital display of parameters for maximum safety.
- Versatile: The perfect solution for acupuncturists and practitioners with high technical standards.
Certification & Origin: Made in China. Professional medical device for therapeutic use.
